K834
Design Introduction
Kintowe K834 wiper is designed to snap into a standard housing and provide reliable medium duty dirt exclusion . The proportions of the wiping lip ensure that it remains in contact with the rod surface to remove all deposits of mud and other forms of contamination except for those found in the heavy duty environment such as steel works and cement factories.
The inside diameter of the seal is provided with ribs to prevent the possibility of blow out due to pressure trapping of the main rod seal.
Kintowe K834 is precision moulded in high performance polyurethane material KINTOWE ®01 for maximum wear resistance.
Advantages
●Snug fit provides effective sealing
●Low wear , long life
●Easy installation
●Pressure relief ribs

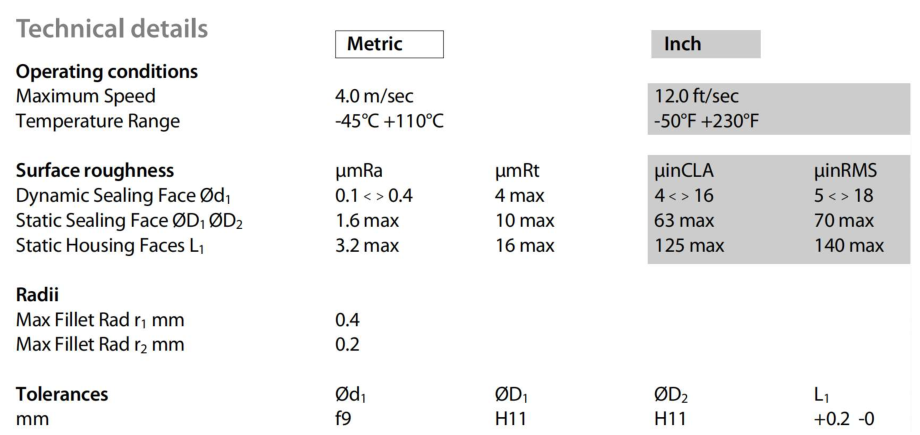

Specification
| Фd1 | ФD1 | ФD2 | L1 | L2 | h | PART No. |
| 18 | 26 | 24.0 | 4.0 | 7.0 | 1.0 | 8340180 |
| 20 | 28 | 26.0 | 4.0 | 7.0 | 1.0 | 8340200 |
| 22 | 30 | 28.0 | 4.0 | 7.0 | 1.0 | 8340220 |
| 25 | 33 | 31.0 | 4.0 | 7.0 | 1.0 | 8340250 |
| 26 | 34 | 32.0 | 4.0 | 7.0 | 1.0 | 8340260 |
| 28 | 36 | 34.0 | 4.0 | 7.0 | 1.0 | 8340280 |
| 30 | 38 | 36.0 | 4.0 | 7.0 | 1.0 | 8340300 |
| 32 | 40 | 38.0 | 4.0 | 7.0 | 1.0 | 8340320 |
| 35 | 43 | 41.0 | 4.0 | 7.0 | 1.0 | 8340350 |
| 36 | 44 | 42.0 | 4.0 | 7.0 | 1.0 | 8340360 |
| 37 | 45 | 43.0 | 4.0 | 7.0 | 1.0 | 8340370 |
| 38 | 46 | 44.0 | 4.0 | 7.0 | 1.0 | 8340380 |
| 40 | 48 | 46.0 | 4.0 | 7.0 | 1.0 | 8340400 |
| 45 | 53 | 51.0 | 4.0 | 7.0 | 1.0 | 8340450 |
| 46 | 54 | 52.0 | 4.0 | 7.0 | 1.0 | 8340460 |
| 48 | 56 | 54.0 | 4.0 | 7.0 | 1.0 | 8340480 |
| 50 | 58 | 56.0 | 4.0 | 7.0 | 1.0 | 8340500 |
| 55 | 63 | 61.0 | 4.0 | 7.0 | 1.0 | 8340550 |
| 56 | 64 | 62.0 | 4.0 | 7.0 | 1.0 | 8340560 |
| 60 | 68 | 66.0 | 4.0 | 7.0 | 1.0 | 8340600 |
| 63 | 71 | 69.0 | 4.0 | 7.0 | 1.0 | 8340630 |
| 65 | 73 | 71.0 | 4.0 | 7.0 | 1.0 | 8340650 |
| 70 | 78 | 76.0 | 4.0 | 7.0 | 1.0 | 8340700 |
| 75 | 83 | 81.0 | 4.0 | 7.0 | 1.0 | 8340750 |
| 80 | 88 | 86.0 | 4.0 | 7.0 | 1.0 | 8340800 |
| 90 | 98 | 96.0 | 4.0 | 7.0 | 1.0 | 8340900 |
| 100 | 108 | 106.0 | 4.0 | 7.0 | 1.0 | 8341000 |
| 110 | 118 | 116.0 | 4.0 | 7.0 | 1.0 | 8341100 |
| 140 | 152 | 149.0 | 4.0 | 7.0 | 1.0 | 8341400 |
